NORCA-16 HR Couples
Normally $79,990*
Now from $75,990.00*
2 Berth
Ensuite With Toilet
400Ah Lithium
400W Solar
Off-Road Ready
King Size Bed
Ensuite + Separate Toilet
400Ah LiFePO4 Lithium
400W Solar
All specifications indicative — confirm final build details with Nomadic.
Explore all of Australia
NORCA-16 HR Couples

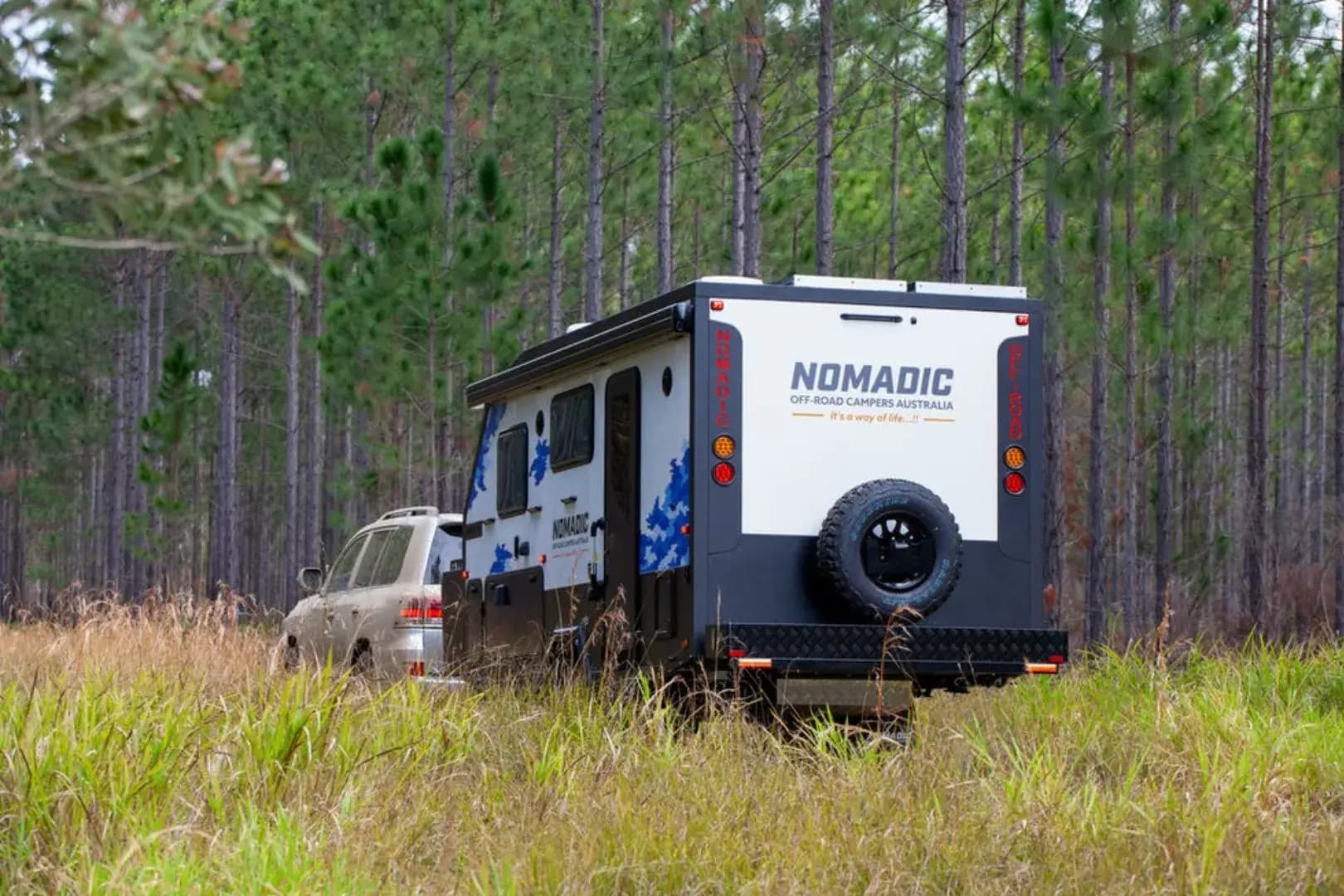

The NORCA-16 is a versatile light weight 16 foot hybrid caravan designed for couples wanting off-road luxury.
Constructed using the latest in timber free core filled sandwich panel technology, honey comb flooring and single piece roof design the NORCA Range is light weight yet super strong.
Internally you will find a permanently set up king size master bed, with loads of storage for personal effect & clothes. A large 175l upright fridge will help to keep items at the ready for when the cold mornings bite.
A large single piece fiberglass molded onboard ensuite with hot shower & separate toilet will bolster your off-grid camping experience.

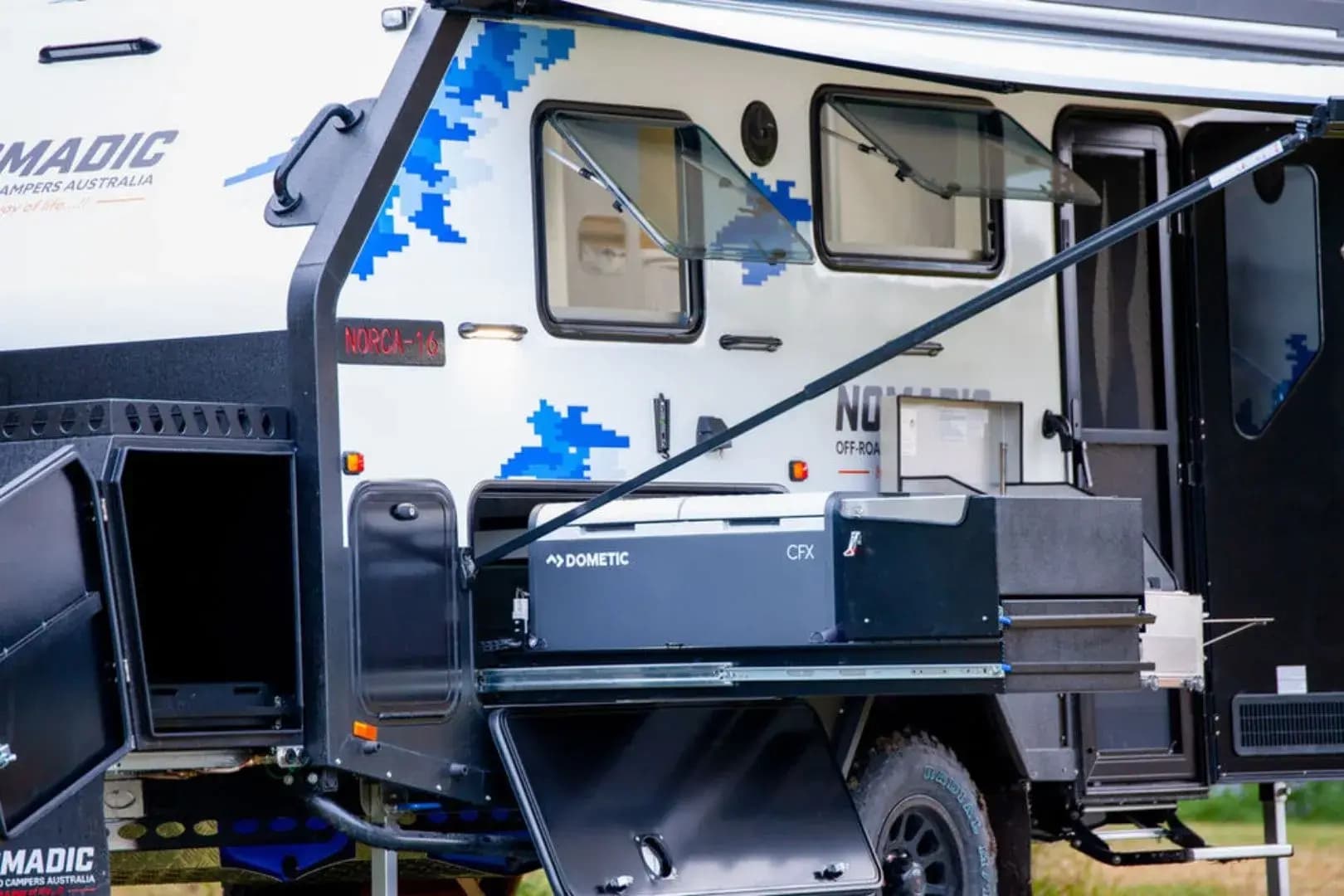

Step outside and you will find a very well equipped full stainless steel kitchen, with large fridge slide and ample storage housed under a huge awning that has been sealed from the back to prevent water ingress.
With our new POWER BOOST+ system you can spend more time exploring untouched areas of Australia in style. Wanting Off-Grid & Off-Road? Then you need to explore the Nomadic Range of Hybrid Campers & Off-road Caravans.
Where Can I Buy

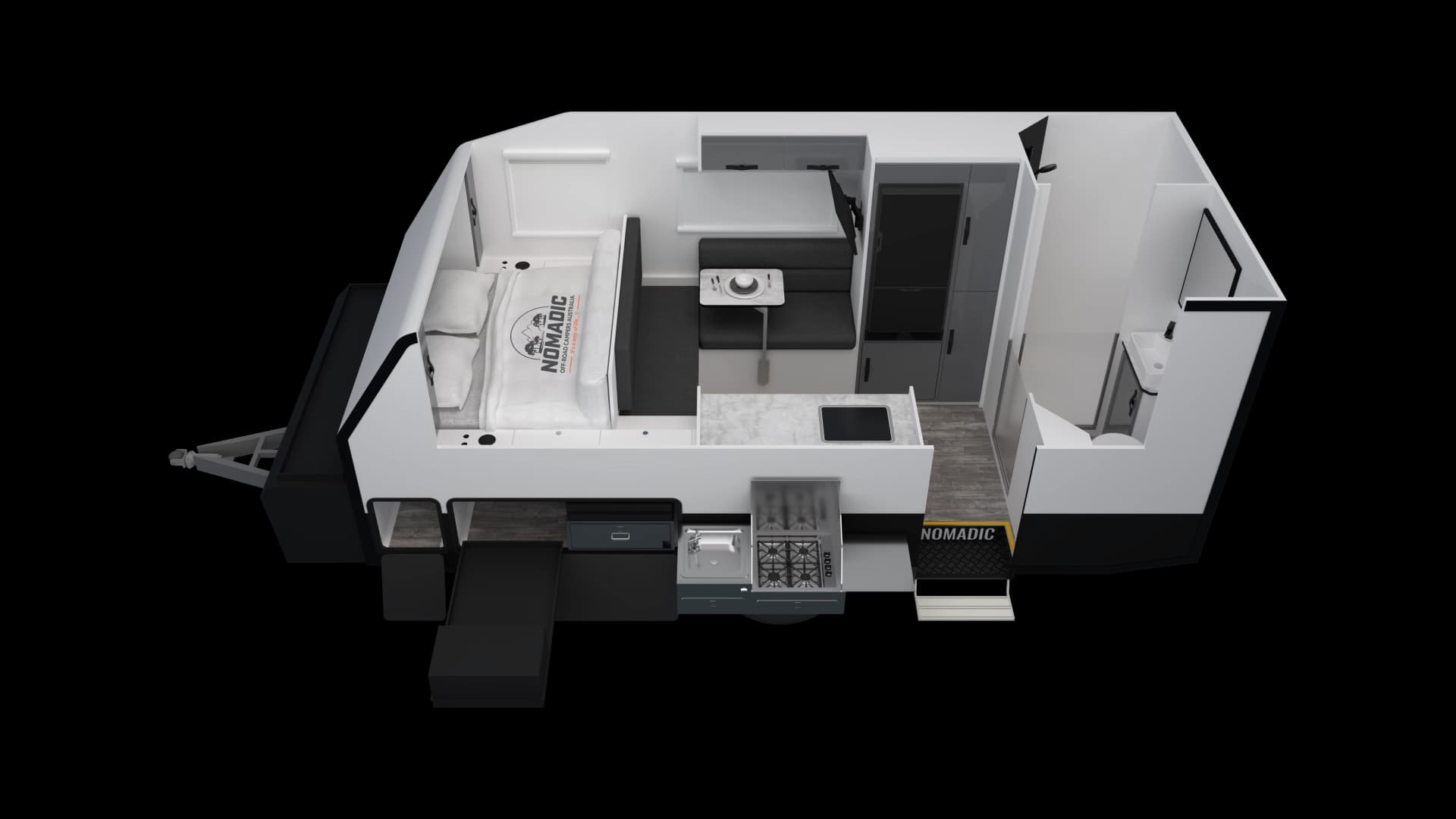

Floor Plans
Dimensions, Weights & Water
Dimensions
- Overall length
- 7.25M
- Travel height
- 3M (to top of a/c)
- Body width
- 2.25M (inc Awning)
- Tyres
- 265/75/R16 Mud Tyres
Weights
- Tare
- 2289KG
- ATM
- 2990KG
- Towball
- 8 - 12% of Load
Construction
Latest Technology Single piece Core filled Frame-less Lightweight Composite Wall & Roof Construction
Timber Free Honeycomb Flooring system
Australian Engineer Certified 6 inch Chassis/Draw-bar system
Hot dipped Galvanised Chassis
Spray protected under-body
Strong & Durable Urethane coated scratch panel exterior
Drive & Safety
Engineered Swing Arm Suspension System with limiting chains
Heavy Duty Coil Springs
Stamped & Rated 6 Stud Land-cruiser Alloy rims
Tekonsha Breakaway Controller
Engineer Certified Chains & Shackles
Rear Recovery Points
12in Hubs with Electric Drum Brakes
Spare Tyre Fitted to the rear.
Off Grid Power
Premium PROJECTA Lithium Battery System featuring a 400ah* LiFeP04 High Discharge battery with inbuilt safety features & Bluetooth monitoring
PROJECTA IDC-X charger connected to draw-bar Anderson plug for car charging & extra solar feed for external Solar Panels
HUGE 2000w PROJECTA Pure sine wave inverter/charger with 4000W BOOST & AC transfer switch that is connected to your air-con for off-grid use.
Internal & External double pole GPO's fitted by Australian Electricians.
2 x 200w Rigid Frame roof mounted solar panels feeding a 40amp/100v Projecta MPPT solar regulator with blue tooth monitor.
ALL 12v and 240v systems are fitted in Australia by Licensed Tradies for piece of mind.
Internal Comforts
Full Length Pillow Top King size mattress
Loads of internal & external USB & 12v socket points
Internal Sink with bench-space saving lid.
Double Glazed Windows with black out blinds and fly-screens
Solid Door with full length lockable screen door
240V Power Points near Kitchen & External Kitchen
Large Internal Single piece molded ensuite with separate toilet
Kitchen & Outback Luxury
TRUMA Gas / Electric Hot water system plumbed to all water points

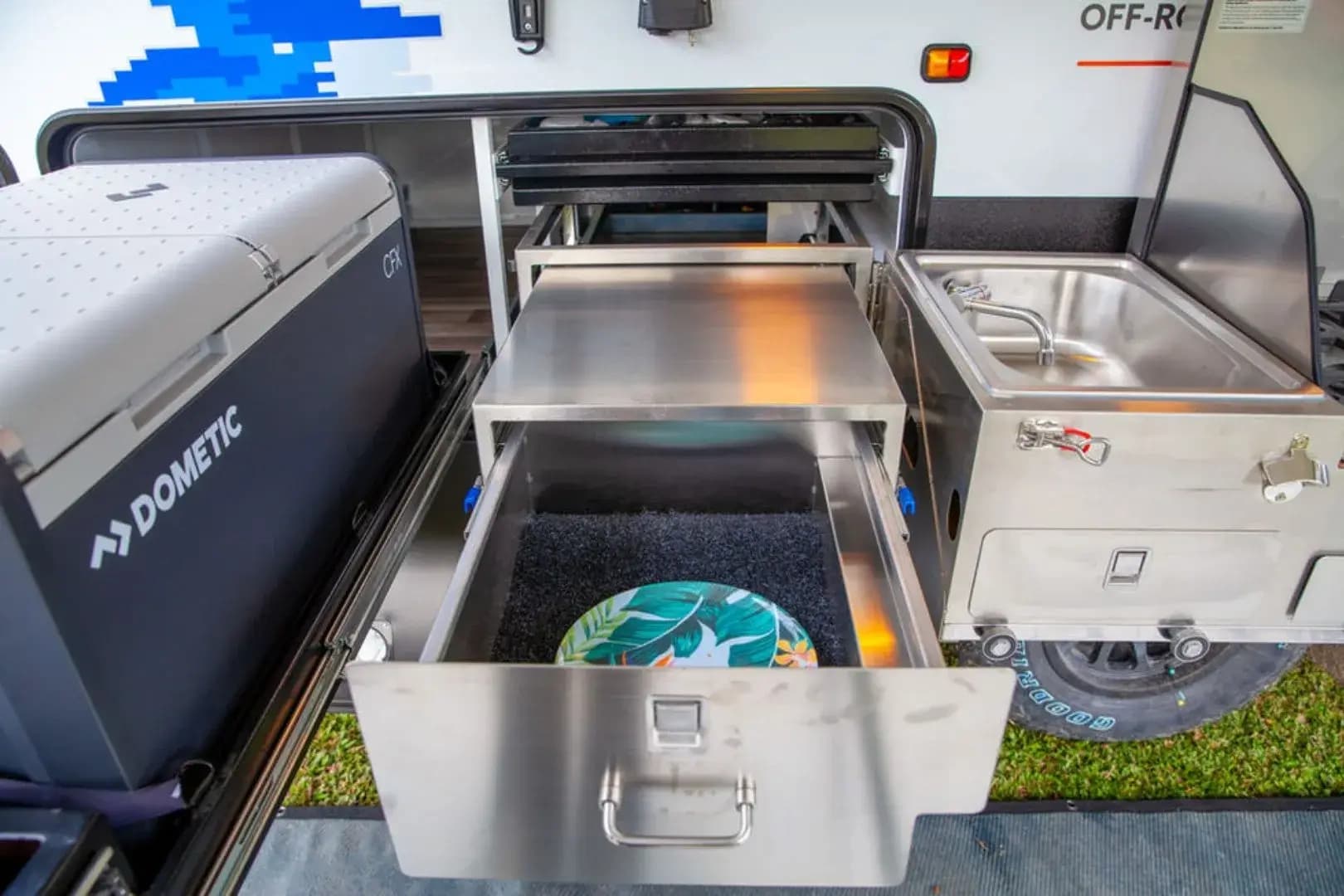

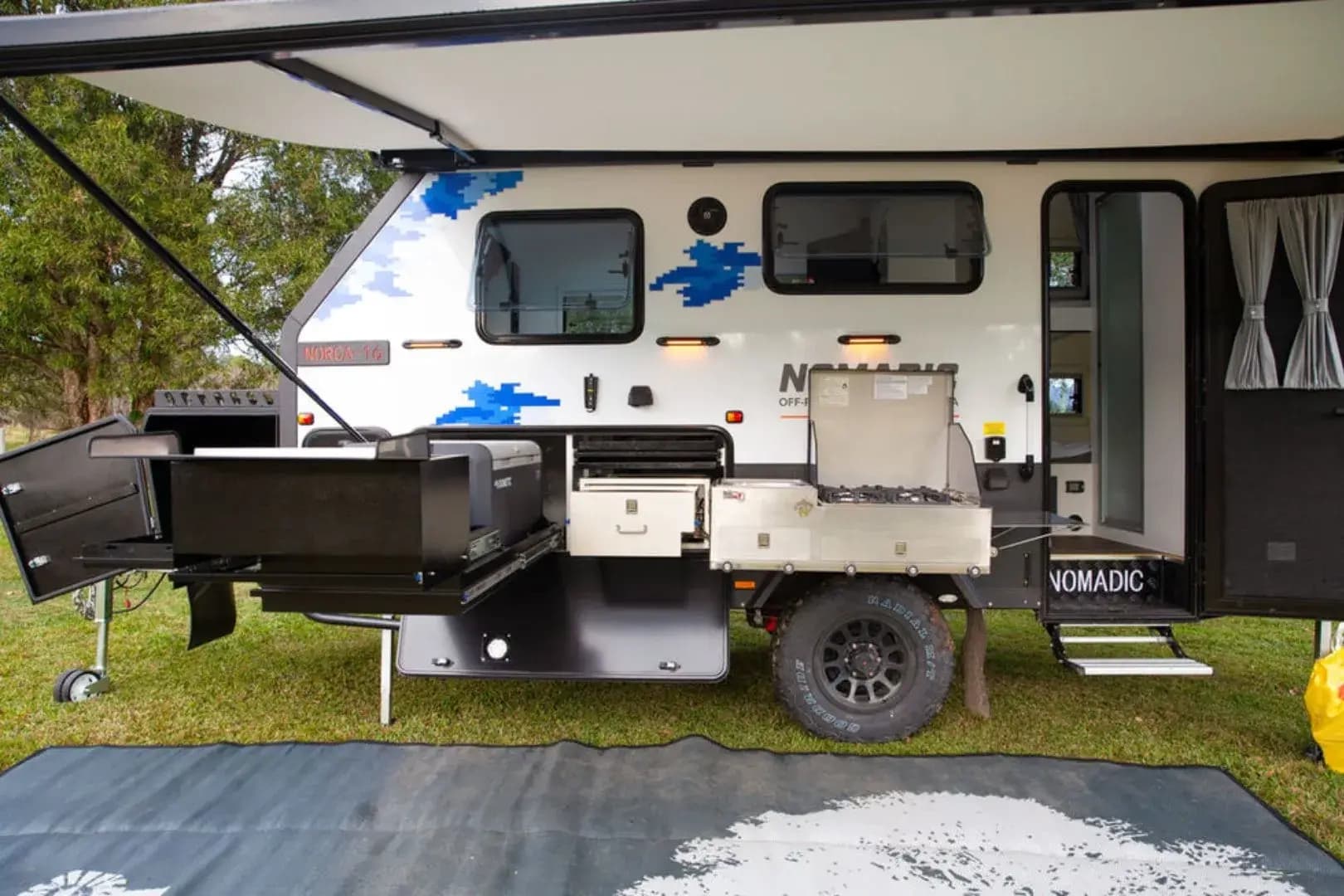

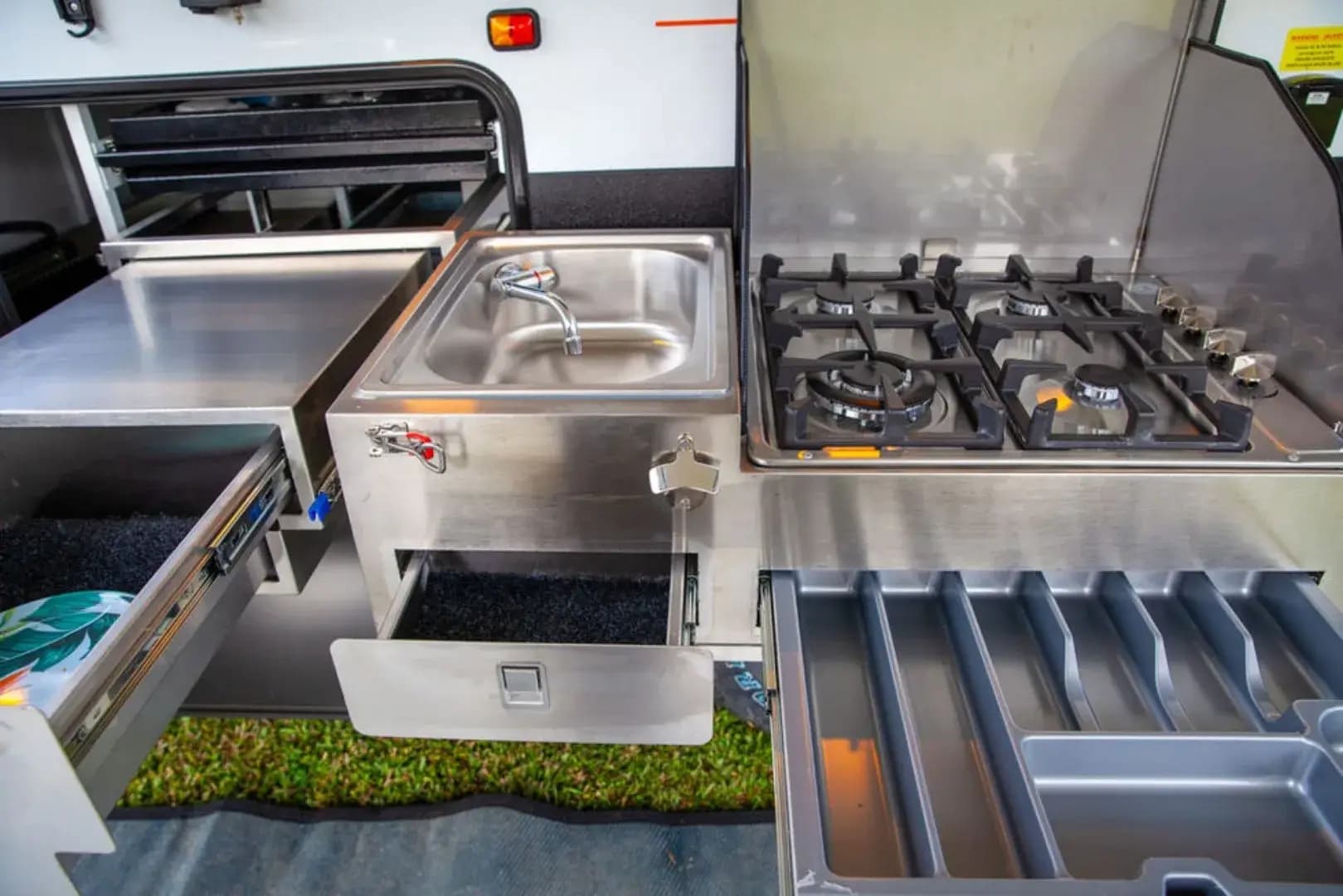

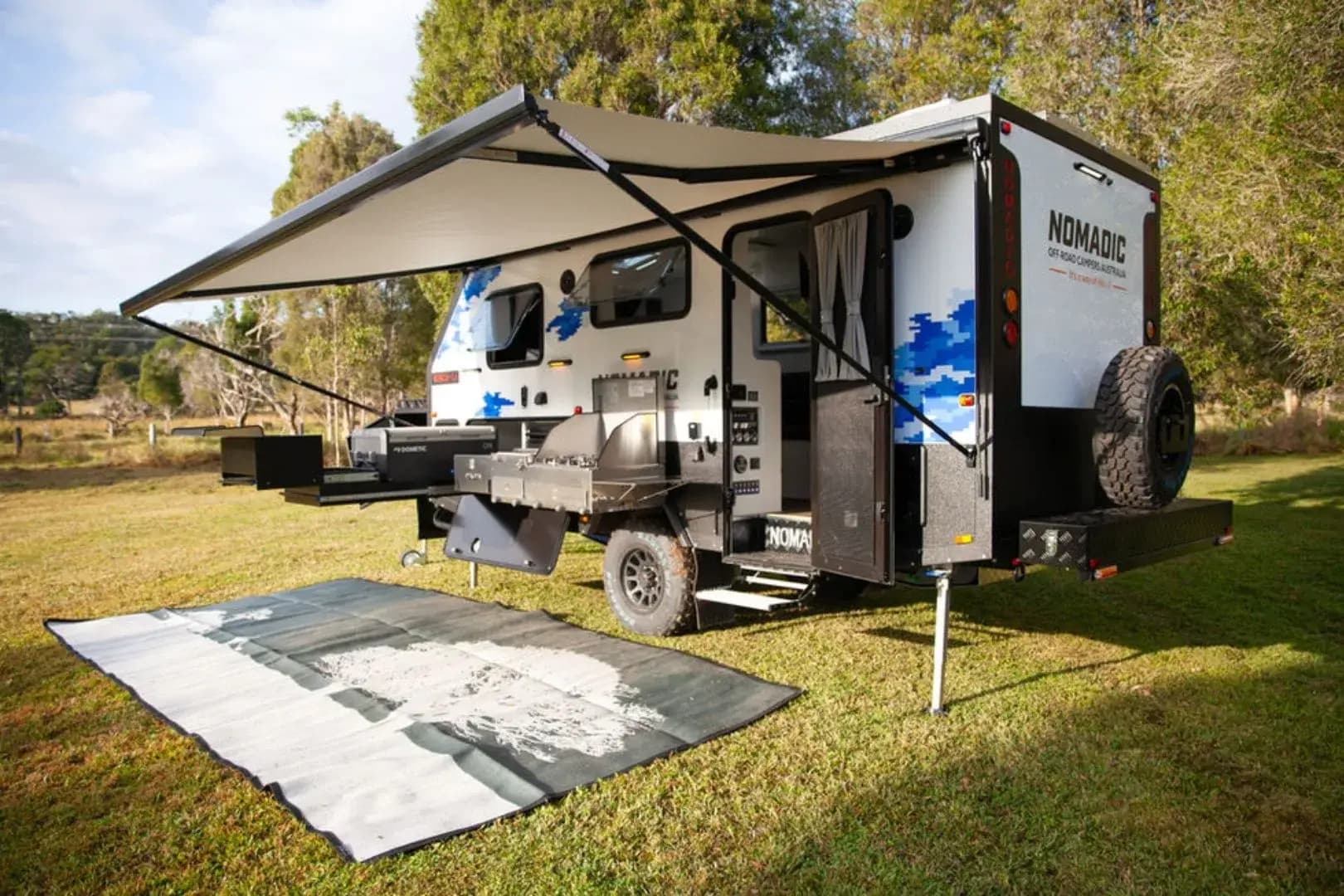

Huge External Stainless steel swing back kitchen with 4 burner stove & deep sink

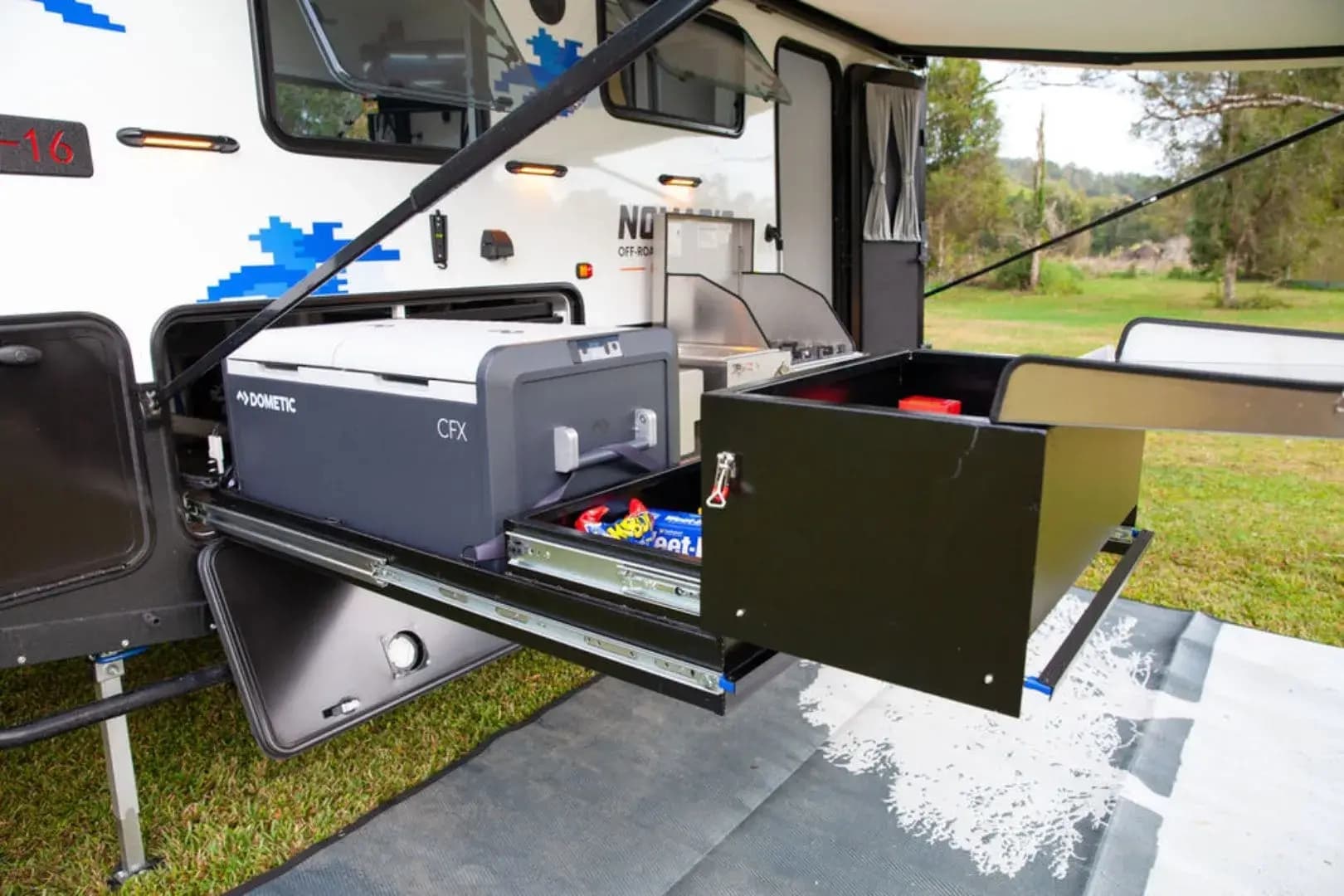

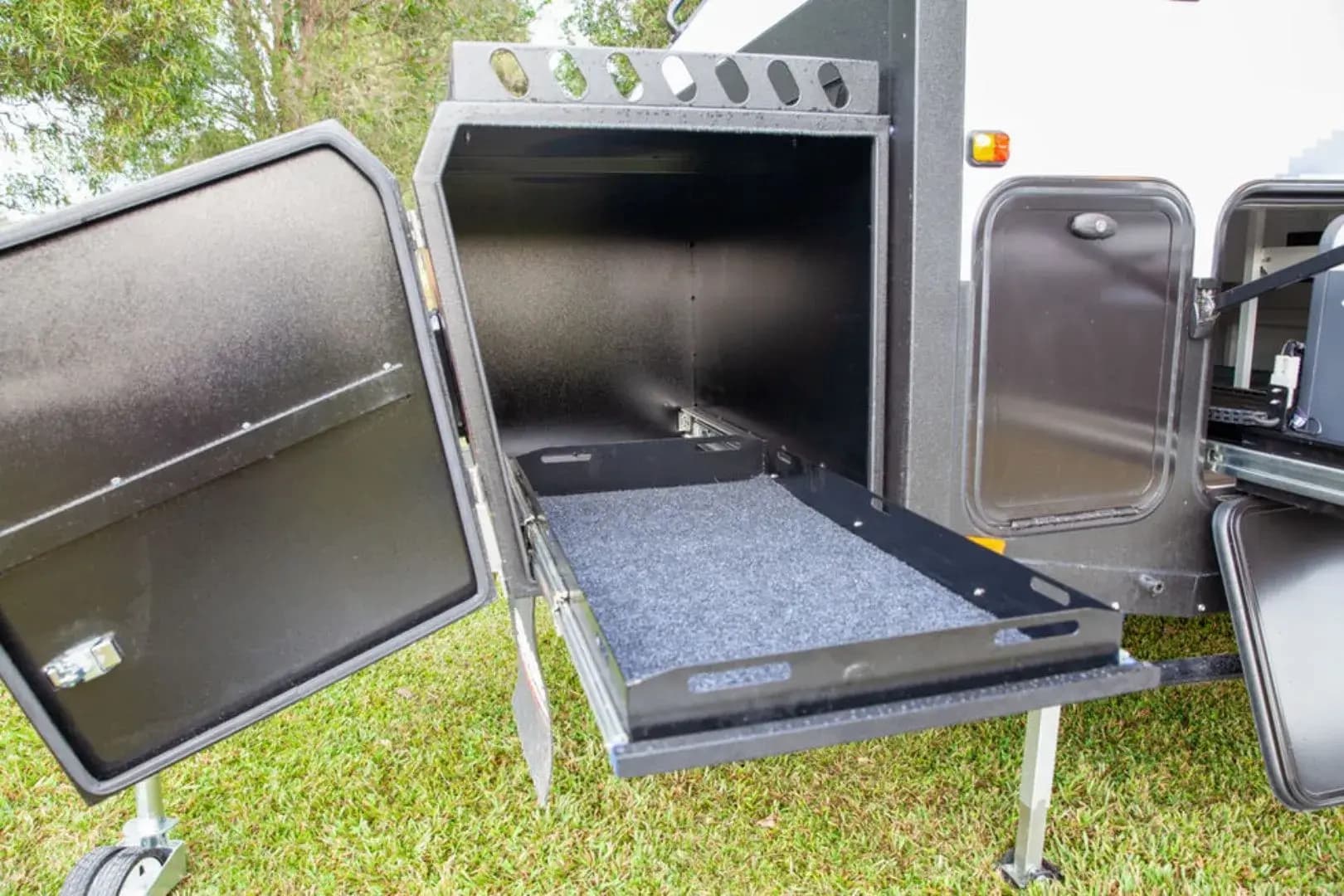

External Fridge slide which will house a Dometic 95l fridge

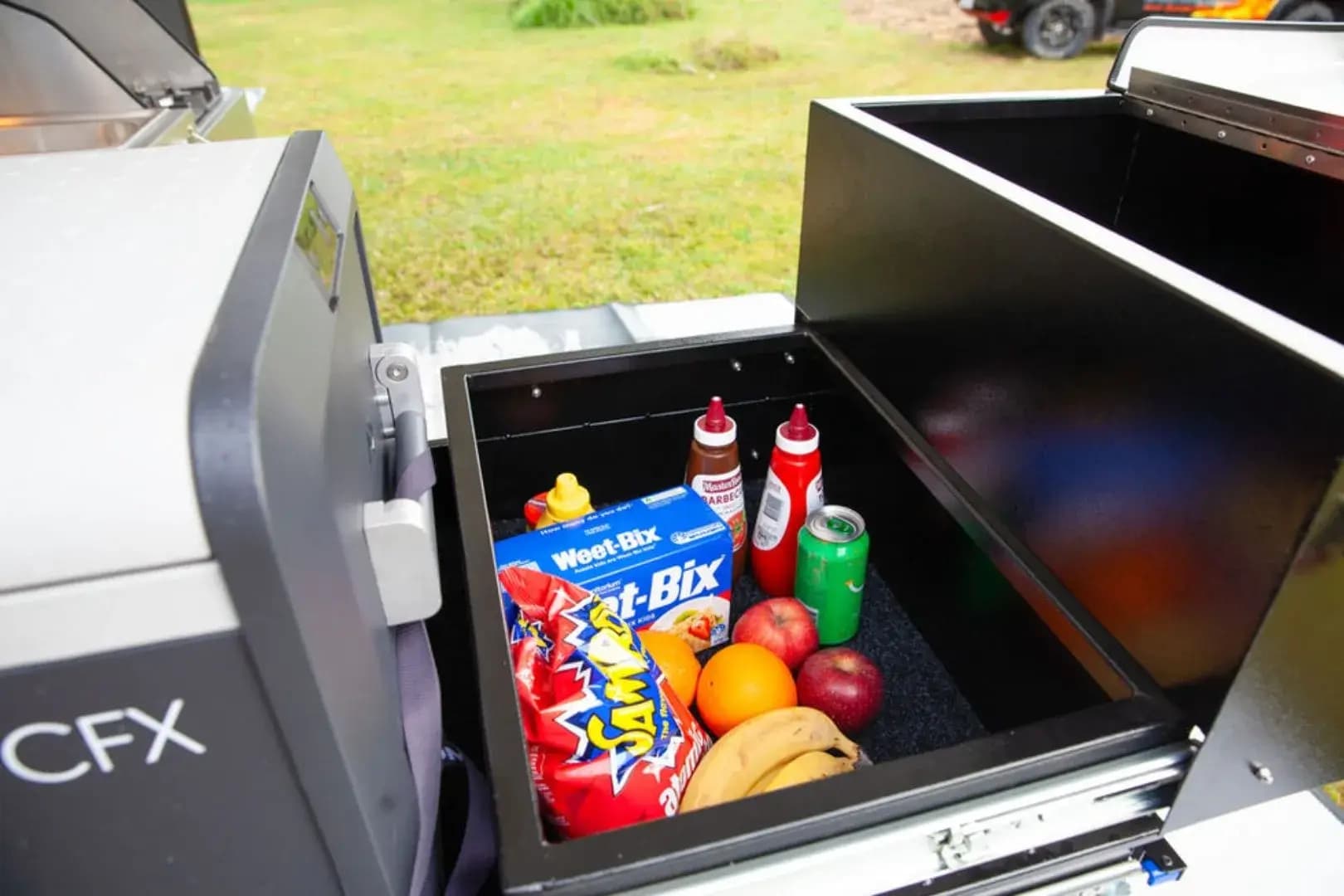

External Pantry Pod and loads of storage for food, plates, pots & pans - No smelly kitchen stuff inside!

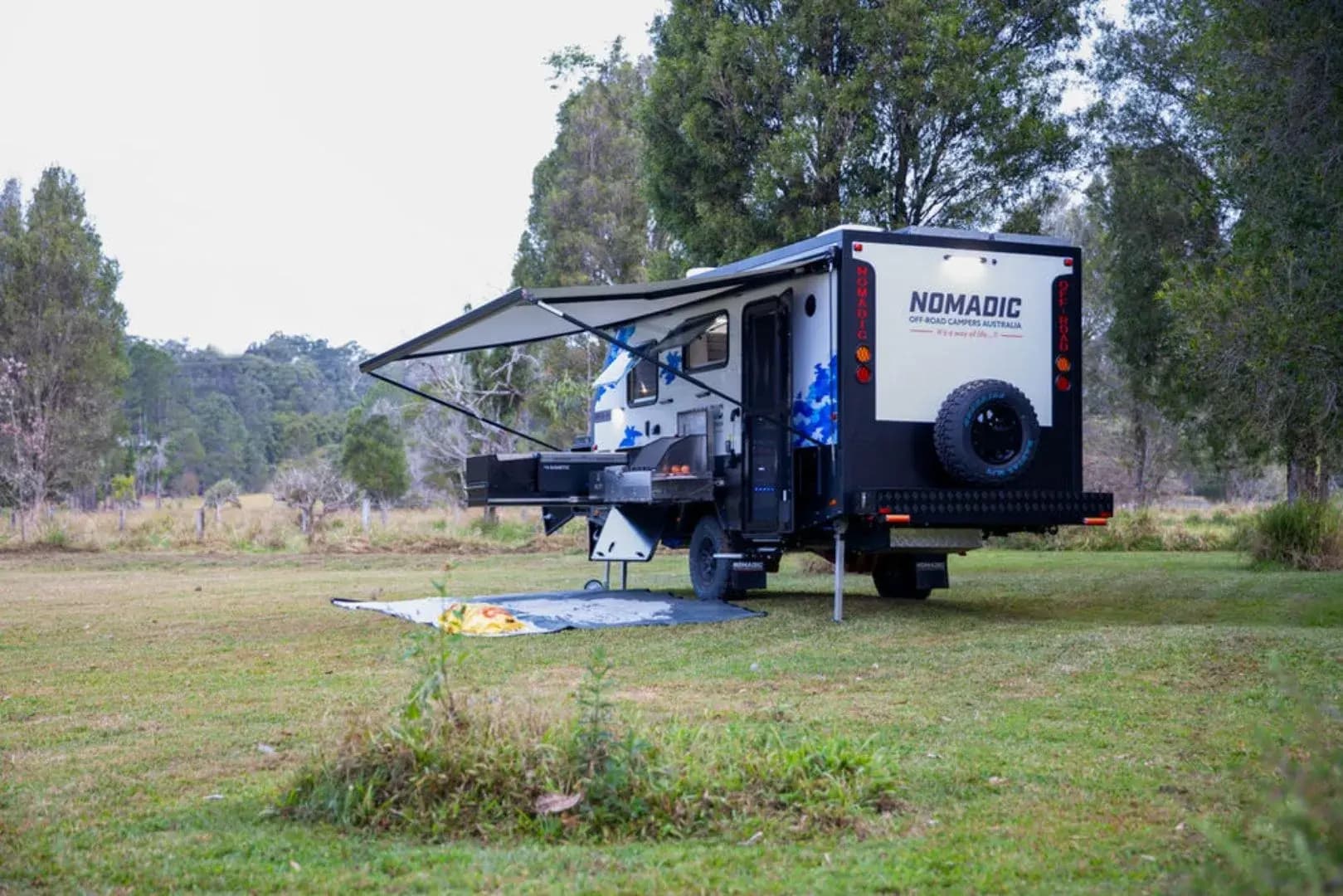

Large water proof wind out awning to cover galley & patio area which is sealed from behind
Hot/Cold External Shower System
Dual water refill points for better balance
Special Bonus Inclusions
DOMETIC Dust Reduction System FITTED*
DOMETIC Inverter Technology Reverse Cycle A/C FITTED
MONROE Shock absorbers FITTED
BEARINGS Japanese Bearings FITTED
SMART TV 24 Inch TV/DVD with USB & HDMI inputs FITTED*
ANTENNA Roof Mounted Omnidirectional Digital Antenna FITTED*
FANS 12v 3 speed Internal Fan FITTED*
CHARGE Bed Side Wireless Charging FITTED*

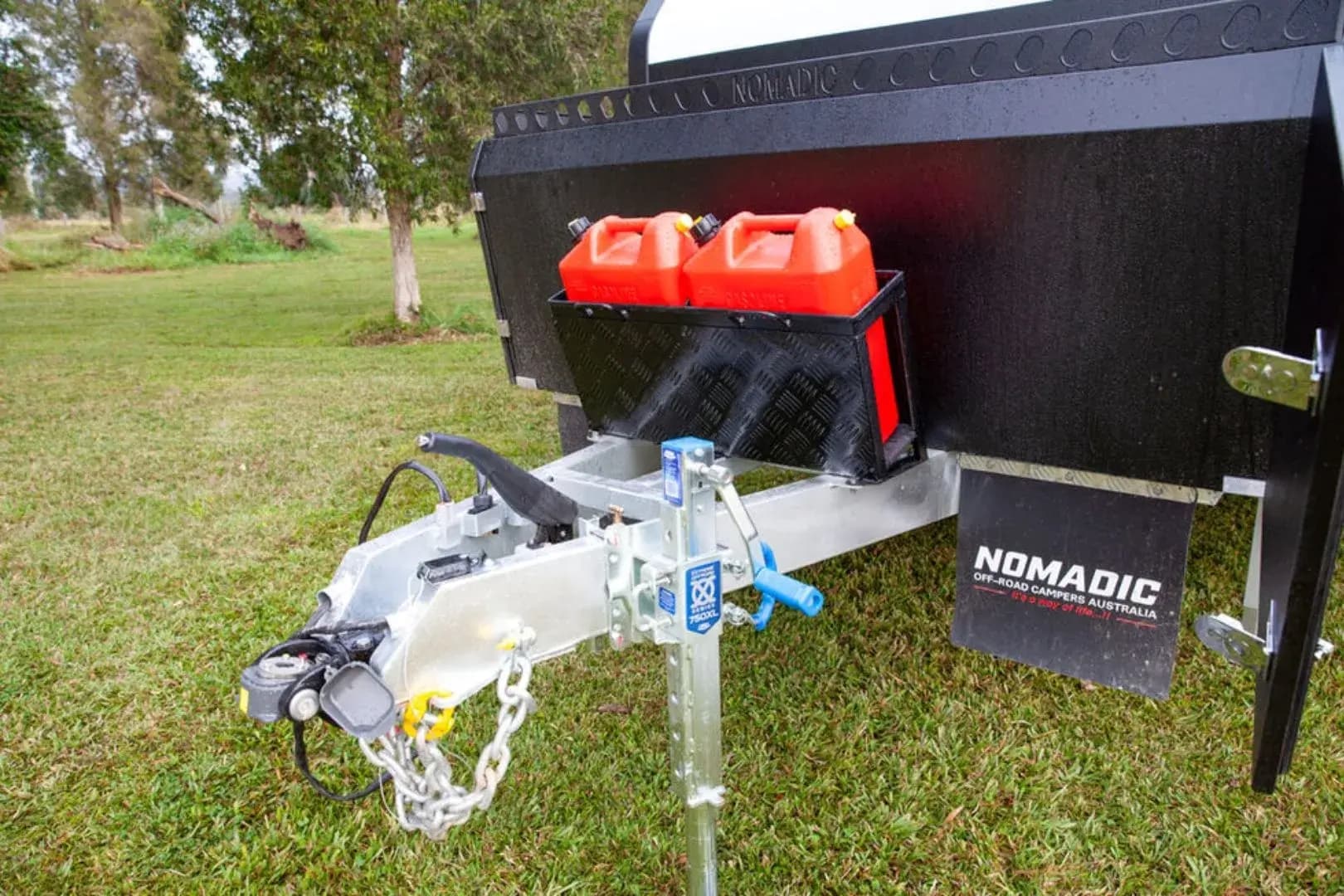

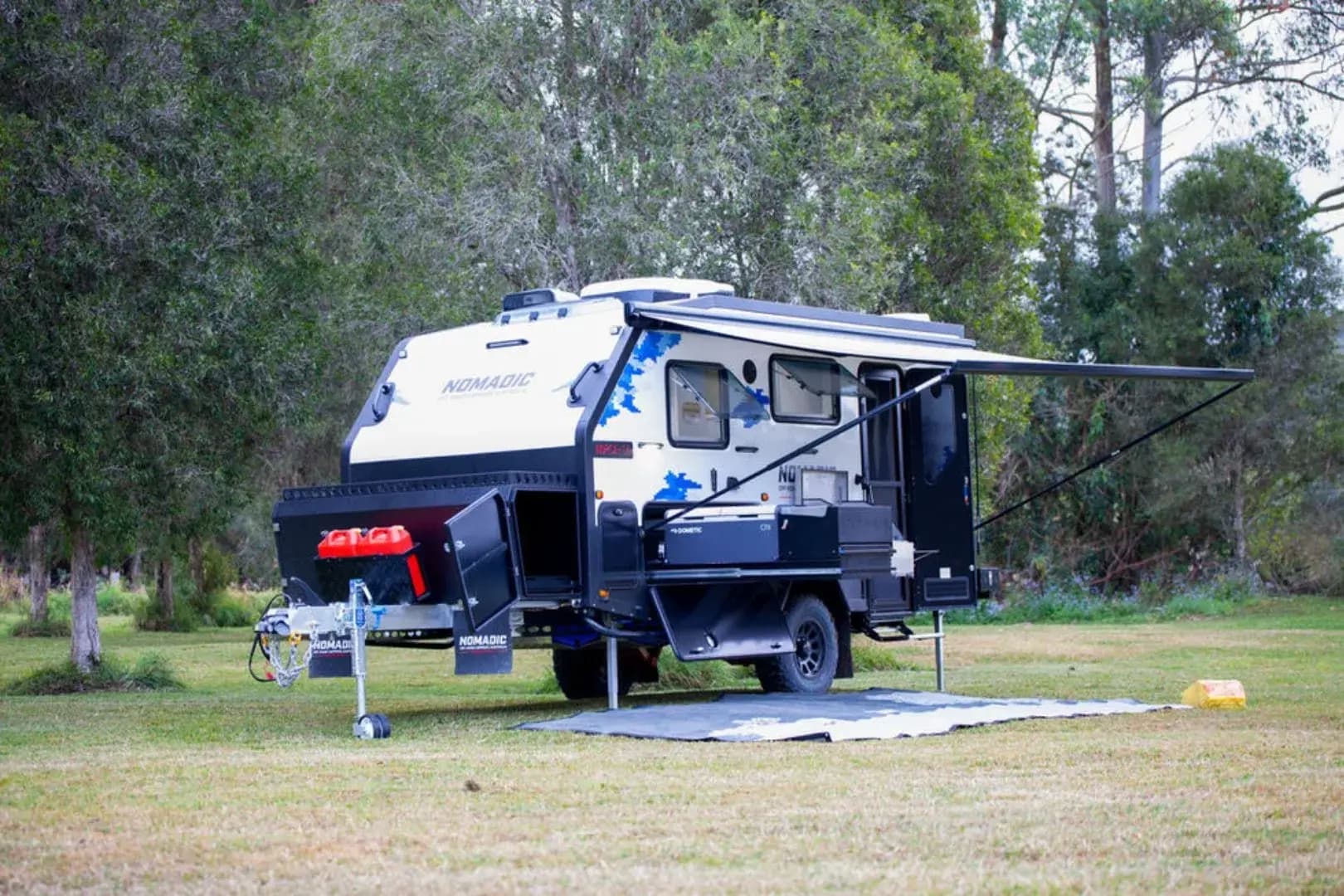

STORAGE Rear Pole Carrier & Jerry Can Holders on draw-bar*
PRIVACY SCREENS for the Awning including 2 end walls, front wall, Draft Skirt*
ANTI-FLAP Arms for your awning*
ARK XO750XL We upgrade to the taller XL Jockey wheel series for better levelling.
INTERNAL COOKING EcoHeat Portable Induction Cook-top for internal cooking when the weather turns a bit iffy!(Not standard with NORCA-14)*
External Colour Options
Nine factory decal schemes, applied on the Sunshine Coast. Every scheme is available on every model in the range.
