Family Off-Road Caravan
NORCA-16 BUNK HR
Normally $79,990*
Now from $74,990.00*
$303 P/W T.A.P.
*Price shown is a from price ex-Caboolture. Weekly repayment is indicative only, to approved purchasers (T.A.P.), and does not constitute a finance offer.
4 Berth
Ensuite
400Ah Lithium
400W Solar
Off-Road Ready
King Size Bed
Combined Ensuite
400Ah LiFePO4 Lithium
400W Solar
All specifications indicative — confirm final build details with Nomadic.
Explore all of Australia
NORCA-16 HR Double Bunks

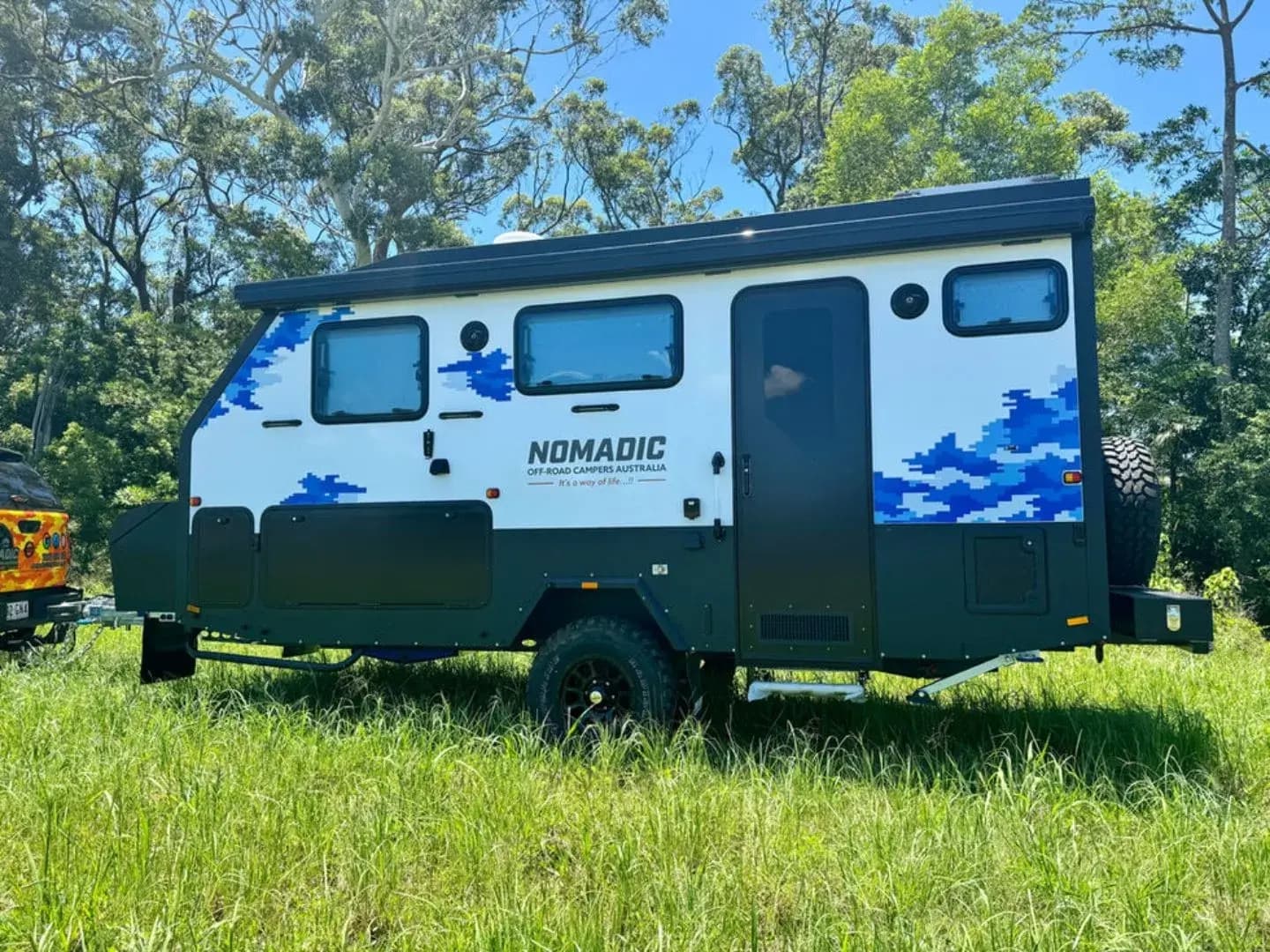

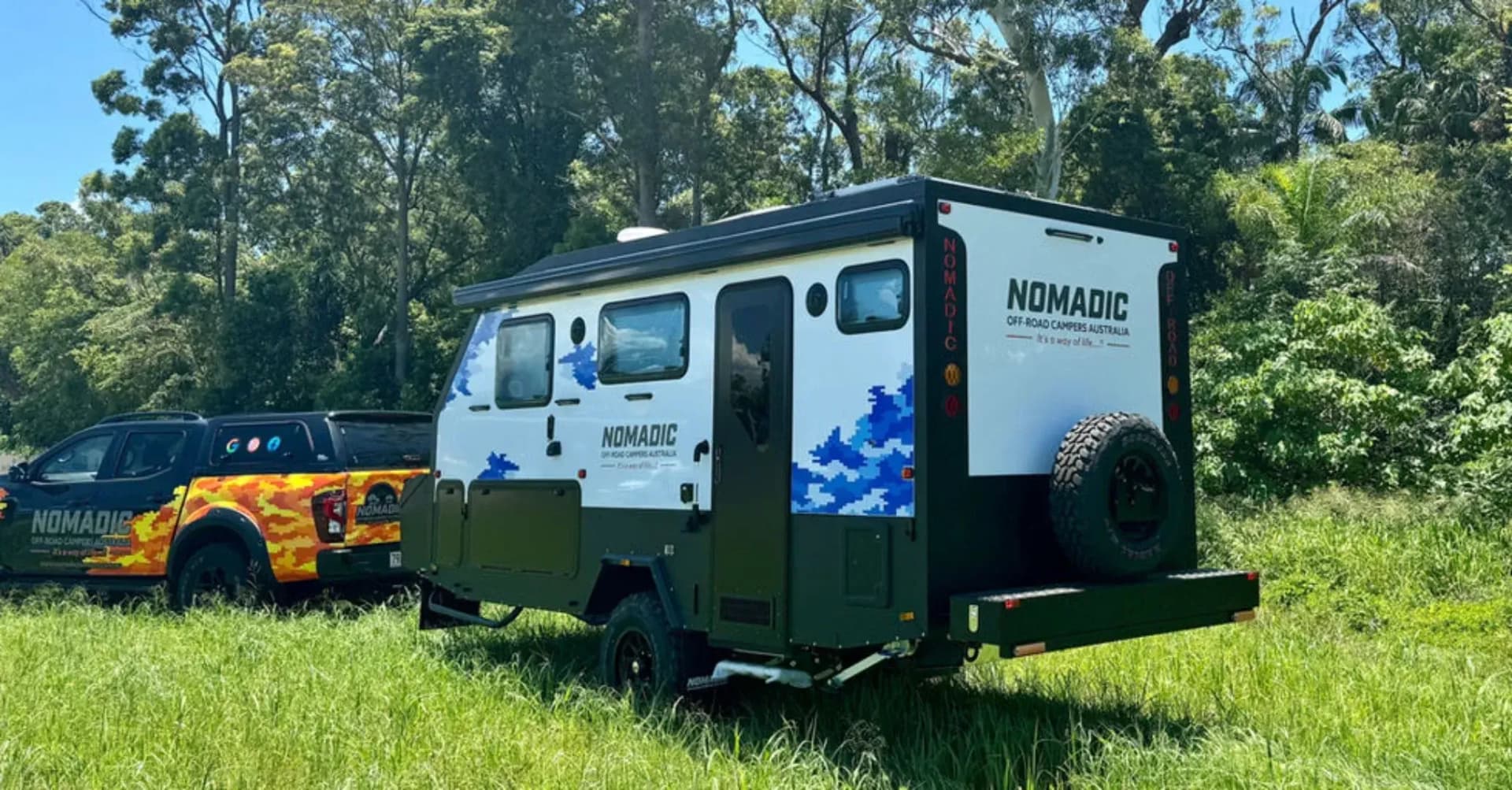

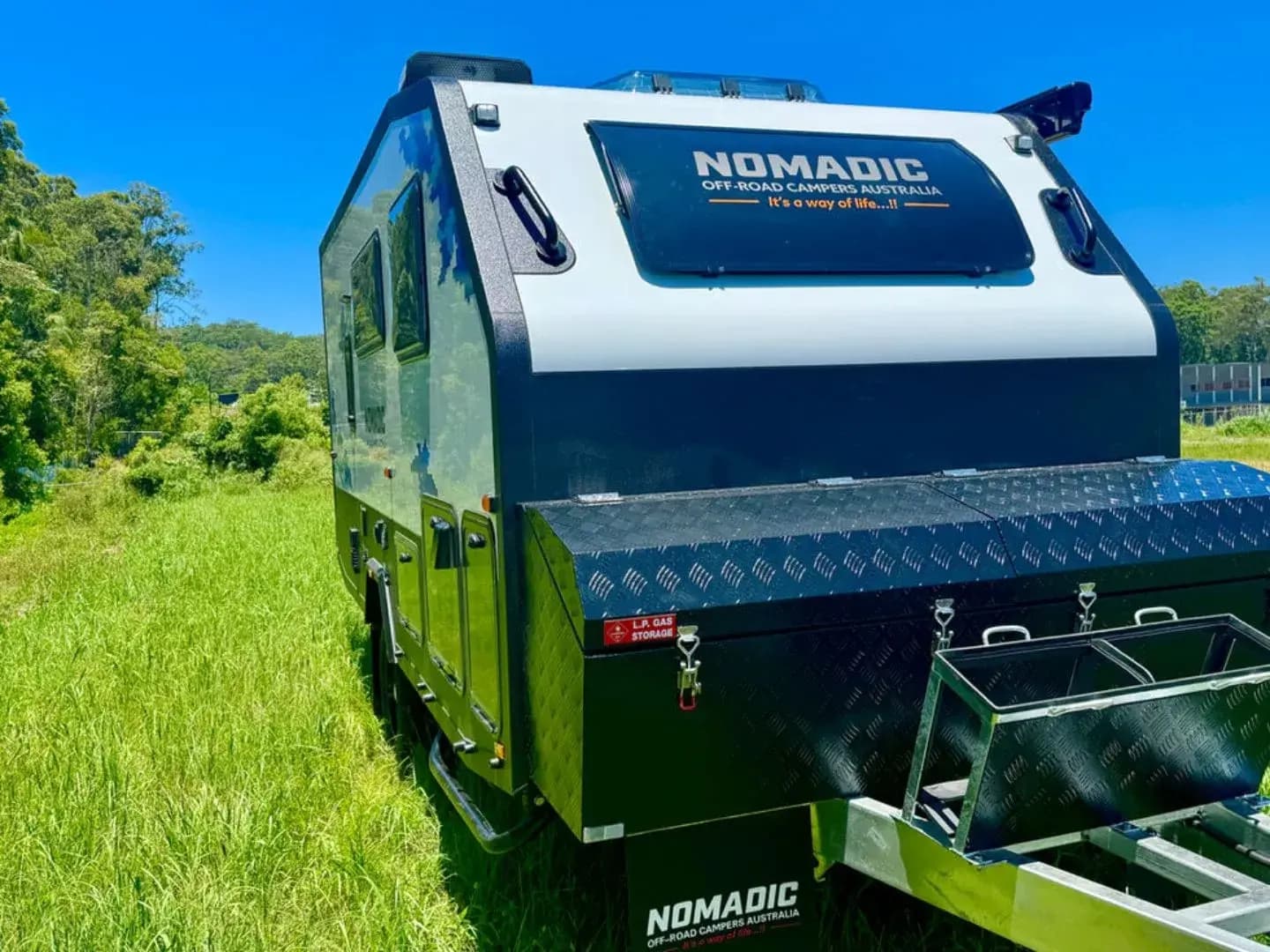

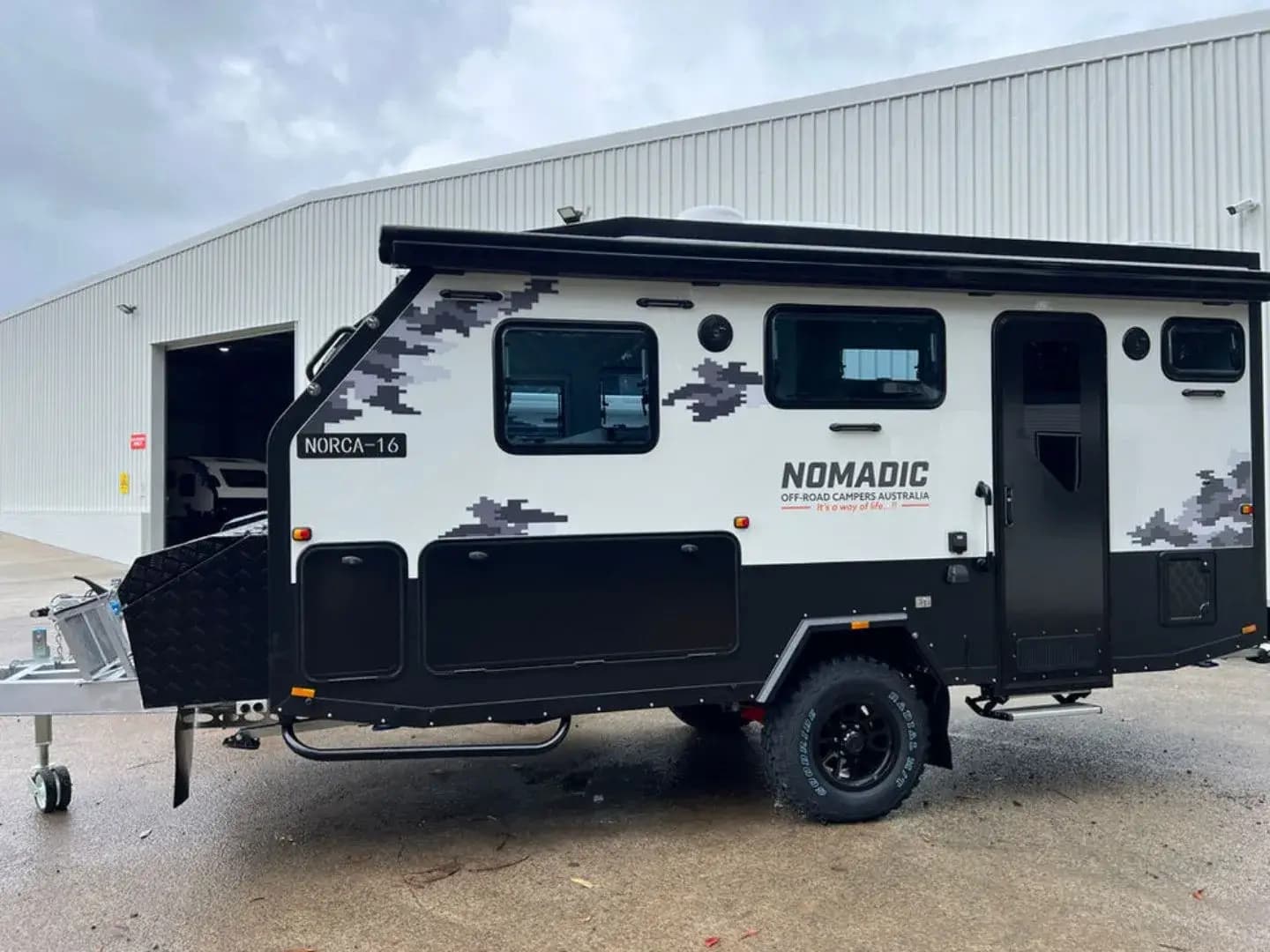

The NORCA-16 is a versatile light weight 16 foot hybrid caravan designed for families of 2 adults and 2 kids. Constructed using the latest in timber free core filled sandwich panel technology, honey comb flooring and single piece roof design the NORCA Range is light weight yet super strong.
Internally you will find a permanently set up king size master bed, as well as 2 huge bunks for the kids. There is loads of storage for personal effect & clothes as well as internal kitchenette and lounge area. A large single piece fiberglass molded onboard ensuite with hot shower & toilet will bolster your off-grid camping experience. Step outside and you will find a very well equipped full stainless steel kitchen, with large fridge slide and ample storage housed under a huge awning that has been sealed from the back to prevent water ingress.
With our new POWER BOOST+ system you can spend more time exploring untouched areas of Australia in style. Wanting Off-Grid & Off-Road? Then you need to explore the Nomadic Range of Hybrid Campers & Off-road Caravans.

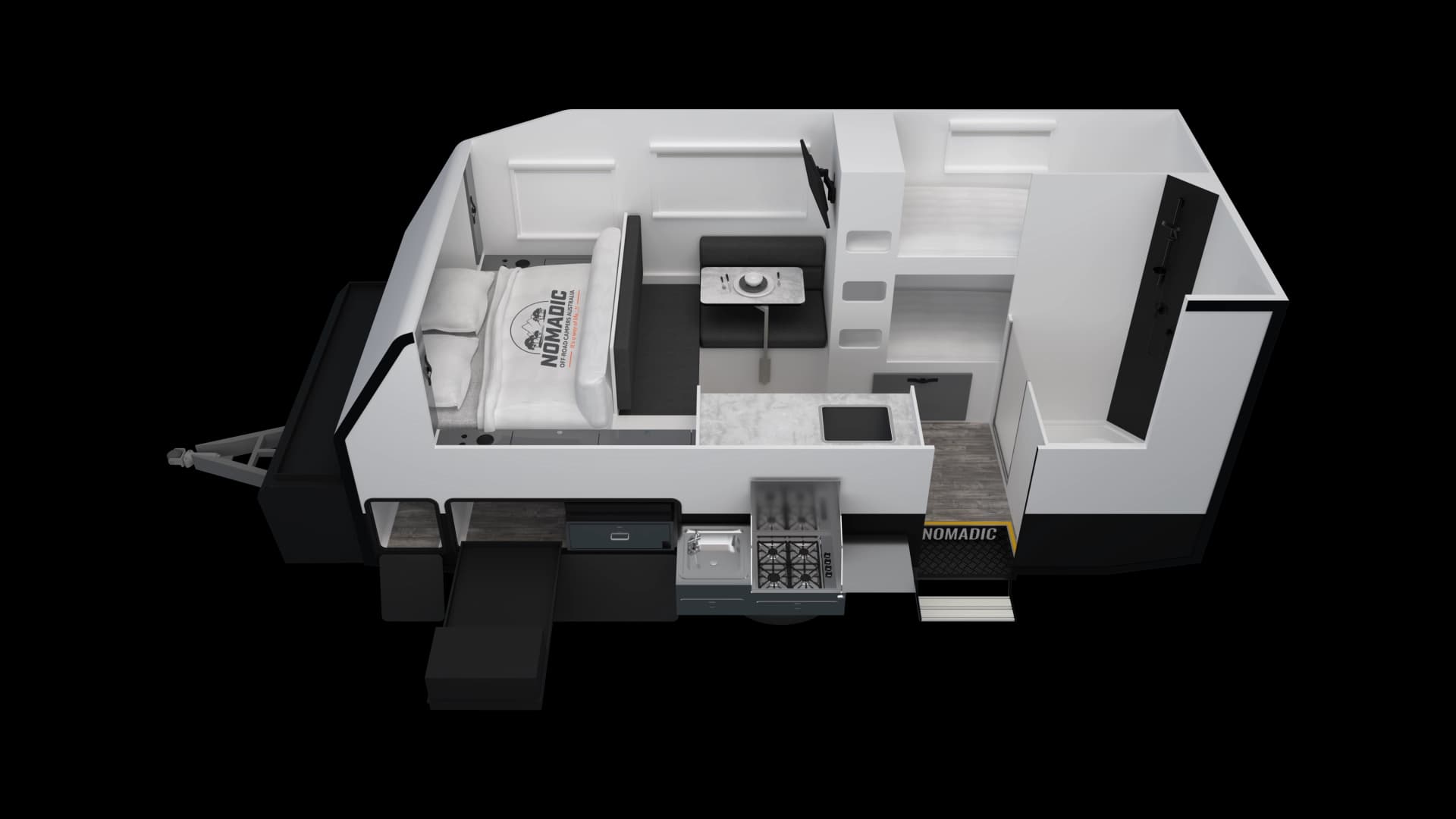

Floor Plans
Cutaway renders shown — request the dimensioned 2D floor plan with your brochure.
Media
Dimensions, Weights & Water
Under 3,000 kg, ready for the long way round
A 2,990 kg ATM keeps the NORCA-16 legal behind most mid-size four-wheel drives, while 240 litres of fresh water and a 120 litre grey tank mean you can stay put for days.
Dimensions
- Overall length
- 7.25M
- Travel height
- 3M
- Body width
- 2.25M (inc Awning)
- Tyres
- 265/75/R16 Mud Tyres
Weights
- Tare
- approx 2190KG
- ATM
- 2990KG
- Towball
- 8 - 12% of Load
Water
- Fresh — 2 × 120 L
- 240 L
- Grey water
- 120 L
- Jerry carrier
- 2 × 20 L
- Hot water
- Gas / electric
All figures indicative — final weights and capacities depend on options fitted. Confirm with Nomadic.
Construction
Latest Technology Single piece Core filled Frame-less Lightweight Composite Wall & Roof Construction
Timber Free Honeycomb Flooring system
Australian Engineer Certified 6 inch Chassis/Draw-bar system
Hot dipped Galvanised Chassis
Spray protected under-body
Strong & Durable Urethane coated scratch panel exterior
Drive & Safety
Engineered Swing Arm Suspension System with limiting chains
Heavy Duty Coil Springs
Stamped & Rated 6 Stud Land-cruiser Alloy rims
Tekonsha Breakaway Controller
Engineer Certified Chains & Shackles
Rear Recovery Points
12in Hubs with Electric Drum Brakes

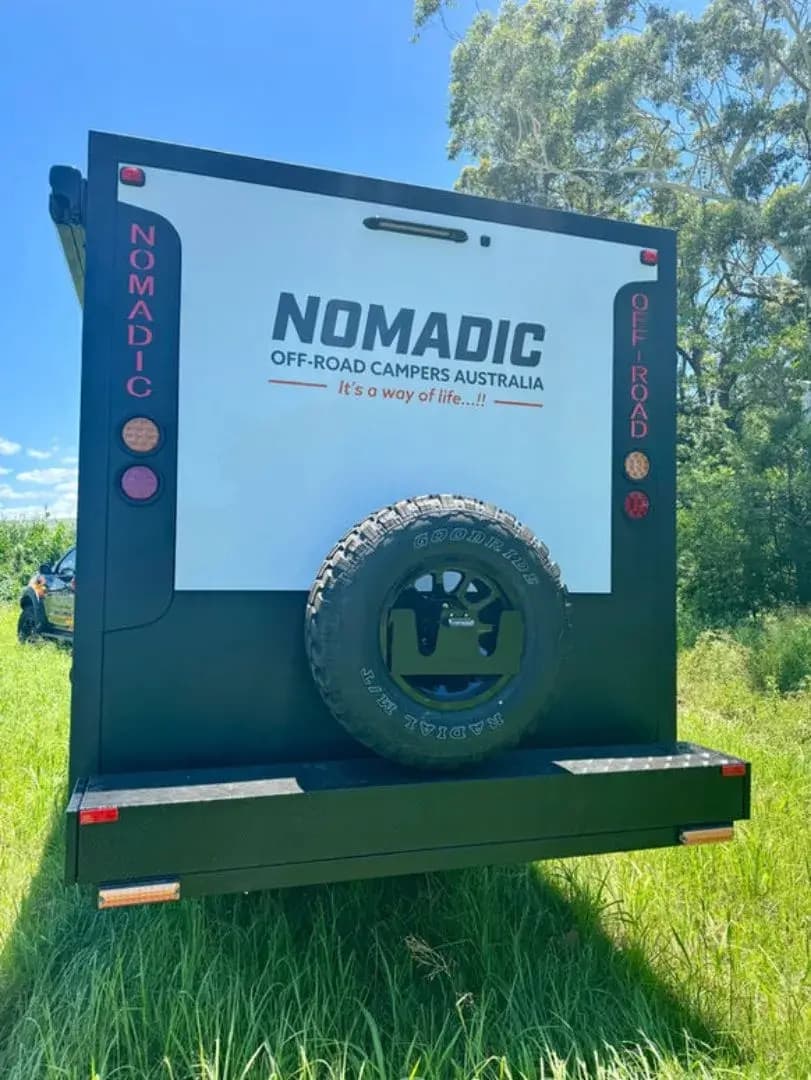

Spare Tyre Fitted to the rear.
Off Grid Power
Premium PROJECTA Lithium Battery System featuring a 400ah* LiFeP04 High Discharge battery with inbuilt safety features & Bluetooth monitoring
PROJECTA IDC-X charger connected to draw-bar Anderson plug for car charging & extra solar feed for external Solar Panels
HUGE 2000w PROJECTA Pure sine wave inverter/charger with 4000W BOOST & AC transfer switch that is connected to your air-con for off-grid use.
Internal & External double pole GPO's fitted by Australian Electricians.
2 x 200w Rigid Frame roof mounted solar panels feeding a 40amp Projecta MPPT solar regulator with blue tooth monitor.
ALL 12v and 240v systems are fitted in Australia by Licensed Tradies for piece of mind.
Internal Comforts
Full Length Pillow Top King size mattress
Loads of internal & external USB & 12v socket points
Internal Sink with bench-space saving lid.
Double Glazed Windows with black out blinds and fly-screens
Solid Door with full length lockable screen door
240V Power Points near Kitchen & External Kitchen
Large Internal Single piece molded ensuite room
Kitchen & Outback Luxury
TRUMA Gas / Electric Hot water system plumbed to all water points
Huge External Stainless steel swing back kitchen with 4 burner stove & deep sink
External Fridge slide which will house a Dometic 95l fridge
External Pantry Pod and loads of storage for food, plates, pots & pans - No smelly kitchen stuff inside!
Large water proof wind out awning to cover galley & patio area which is sealed from behind
Hot/Cold External Shower System
Dual water refill points for better balance
Special Bonus Inclusions
DOMETIC Dust Reduction System FITTED*
DOMETIC Inverter Technology Reverse Cycle A/C FITTED
MONROE Shock absorbers FITTED
BEARINGS Japanese Bearings FITTED
SMART TV 24 Inch TV/DVD with USB & HDMI inputs FITTED*
ANTENNA Roof Mounted Omnidirectional Digital Antenna FITTED*
FANS 12v 3 speed Internal Fan FITTED*
CHARGE Bed Side Wireless Charging FITTED*
STORAGE Rear Pole Carrier & Jerry Can Holders on draw-bar*
PRIVACY SCREENS for the Awning including 2 end walls, front wall, Draft Skirt*
ANTI-FLAP Arms for your awning*
ARK XO750XL We upgrade to the taller XL Jockey wheel series for better levelling.
INTERNAL COOKING EcoHeat Portable Induction Cook-top for internal cooking when the weather turns a bit iffy!*
Off-grid ready, air-con included
A huge solar and lithium power suite, installed by an Australian-qualified auto-electrician at our Sunshine Coast factory. The inverter runs the air conditioner off-grid for those outback summer nights, while gas cooking and diesel heating round out a system built to stay out longer.
- 750W solar — 3 × 250W panels*
- Projecta 400Ah LiFePO4 lithium battery*
- Projecta Bluetooth management system
- 2000W pure sine inverter with 4000W boost — runs the air-con
- Gas cooking and diesel heating
*POWER BOOST+ promotional specification — confirm current inclusions with Nomadic.

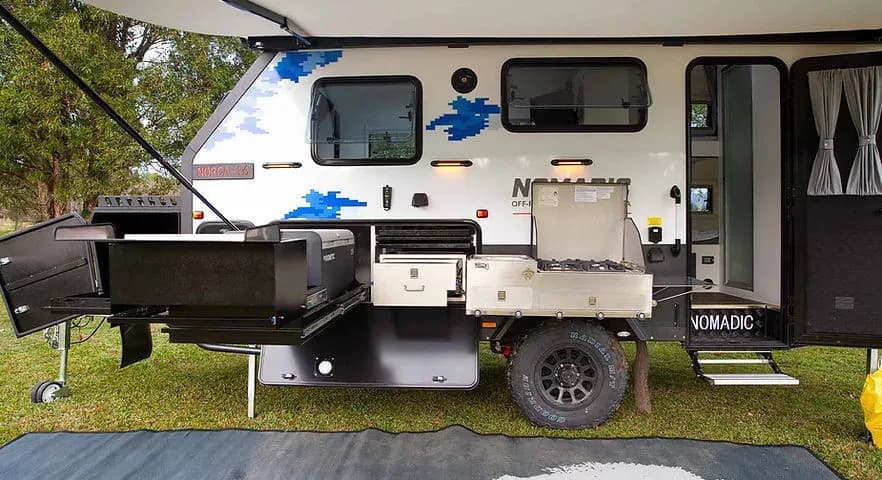

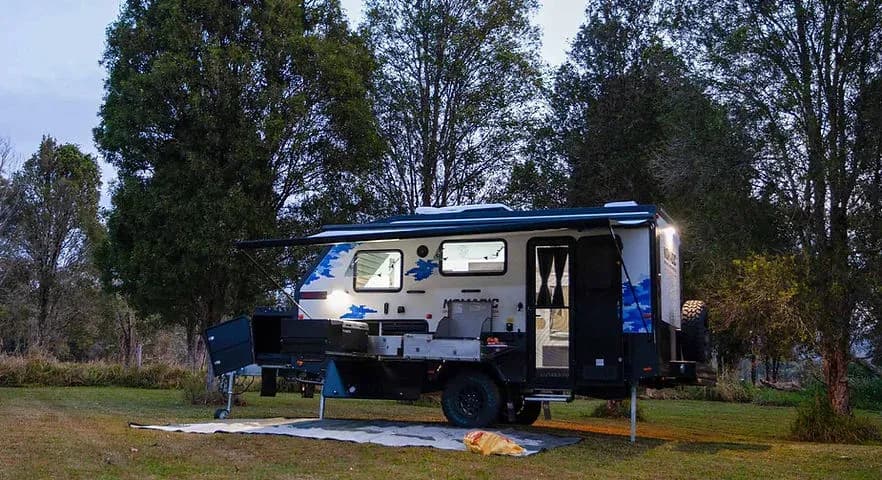

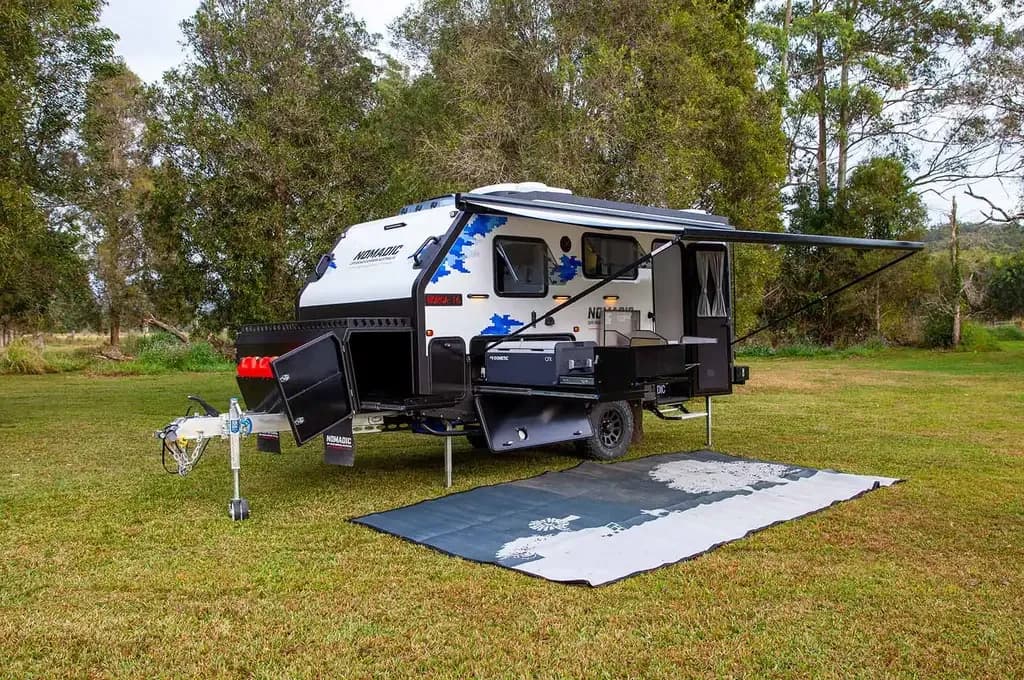

The kitchen pivots out, dinner happens outside
A unique pivot back-to-body kitchen lives under the electric awning: fridge slide with additional storage, a second slide for the BBQ, and multiple benchtop preparation areas. Loads of storage means the crates of school-holiday food actually fit.
- Massive external kitchen with pivot design
- Fridge slide + dedicated BBQ slide
- Electric awning
- Dual gas bayonets
- Firewood carrier
- Multiple benchtop prep areas
A made bed at the end of a long track
The NORCA-16 features a permanently assembled king-size master bed — no nightly set-up — plus two 2m bunks for the kids. The lounge folds out to a comfortable four-seater, and the fully moulded internal ensuite with hot shower and toilet means nobody crosses a campsite at 2am.
- Permanently made king-size master bed
- 2 × 2m bunk beds
- Lounge folds to a four-seater
- Moulded ensuite — hot shower & toilet
- Gas/electric hot water

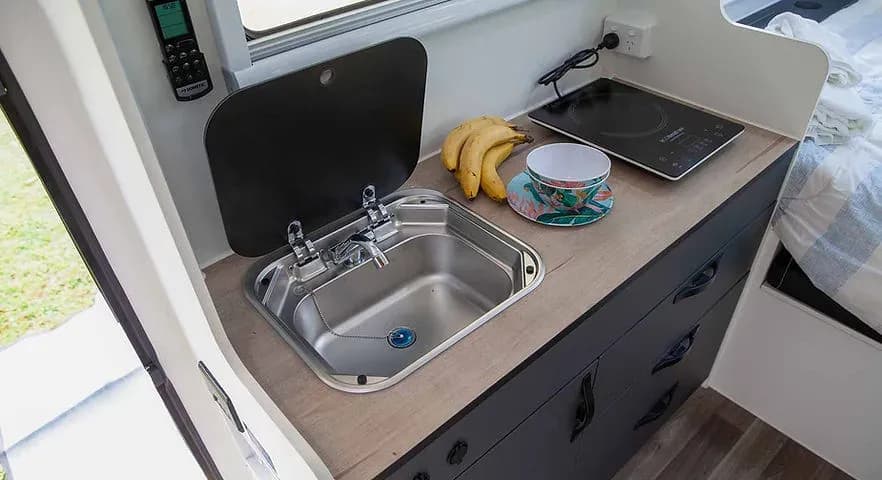

- Internal kitchenette with induction cooktop

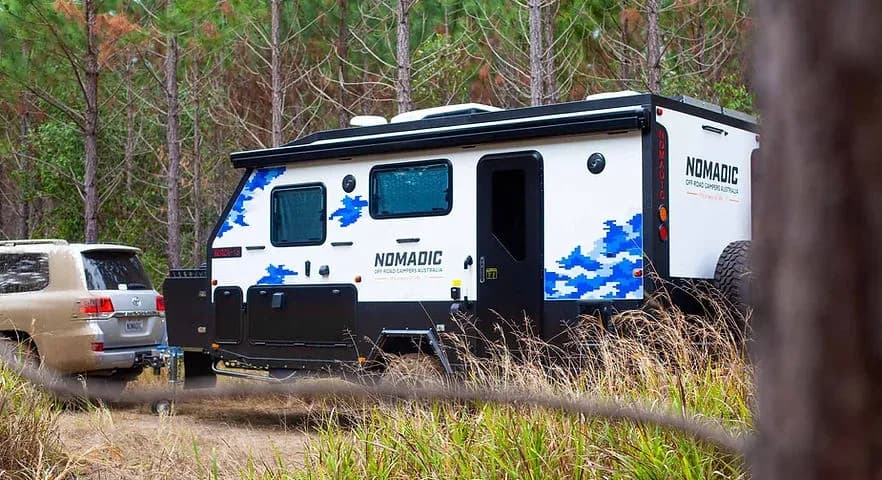

Narrow body, high clearance, real tyres
A narrow-body design keeps towing easy on tight tracks, with a high-clearance underbody and protective plating for the rough stuff. It rides on 265/75 R16 mud tyres with stamped and rated six-stud Land Cruiser alloy rims — so your spare fits the van and the tug.
- Narrow-body design for easy towing
- High-clearance underbody with protective plating
- 265/75 R16 mud tyres
- Stamped & rated six-stud Land Cruiser alloys
- Hot-dip galvanised chassis — lifetime warranty
External Colour Options
Nine factory decal schemes, applied on the Sunshine Coast. Every scheme is available on every model in the range.
